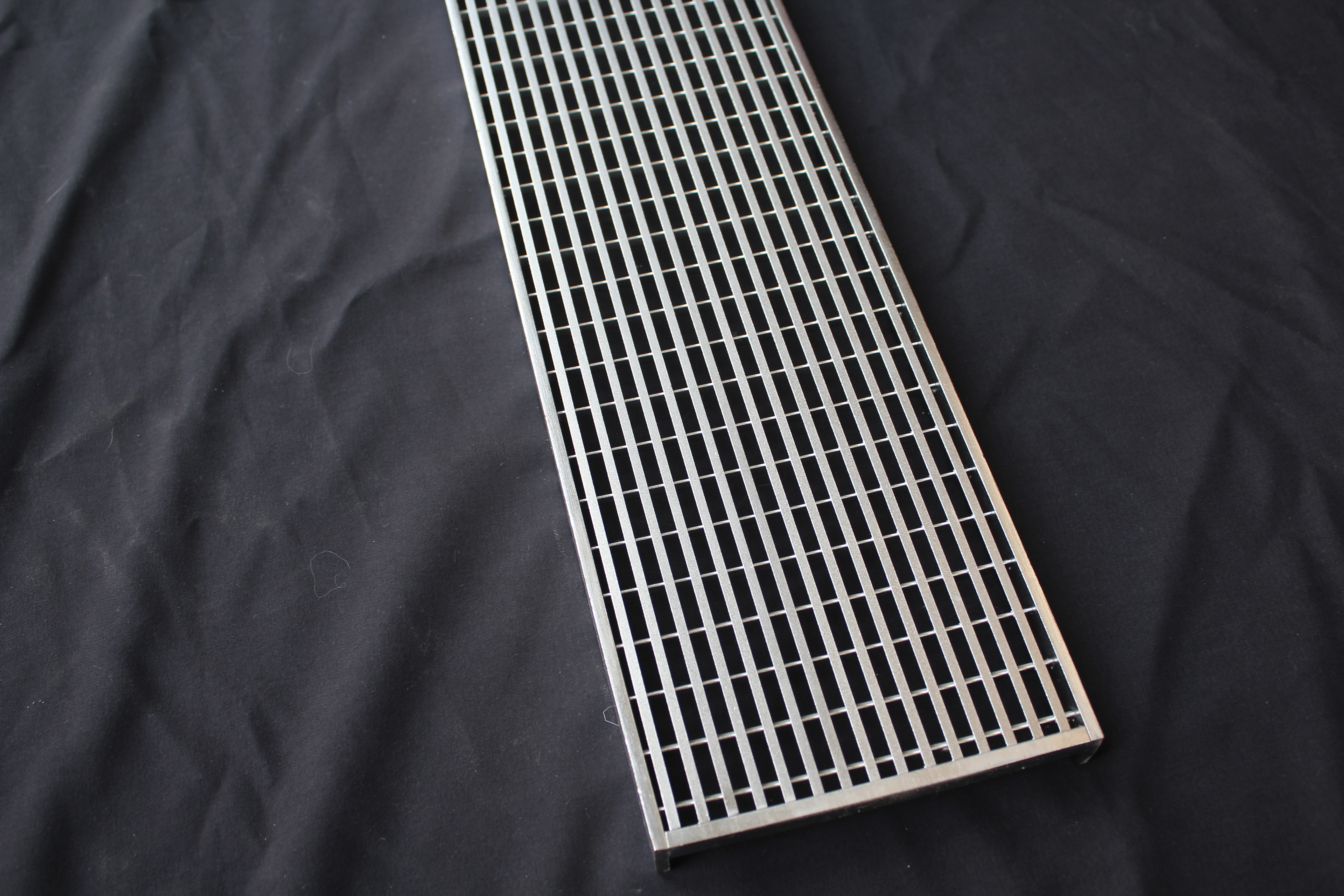

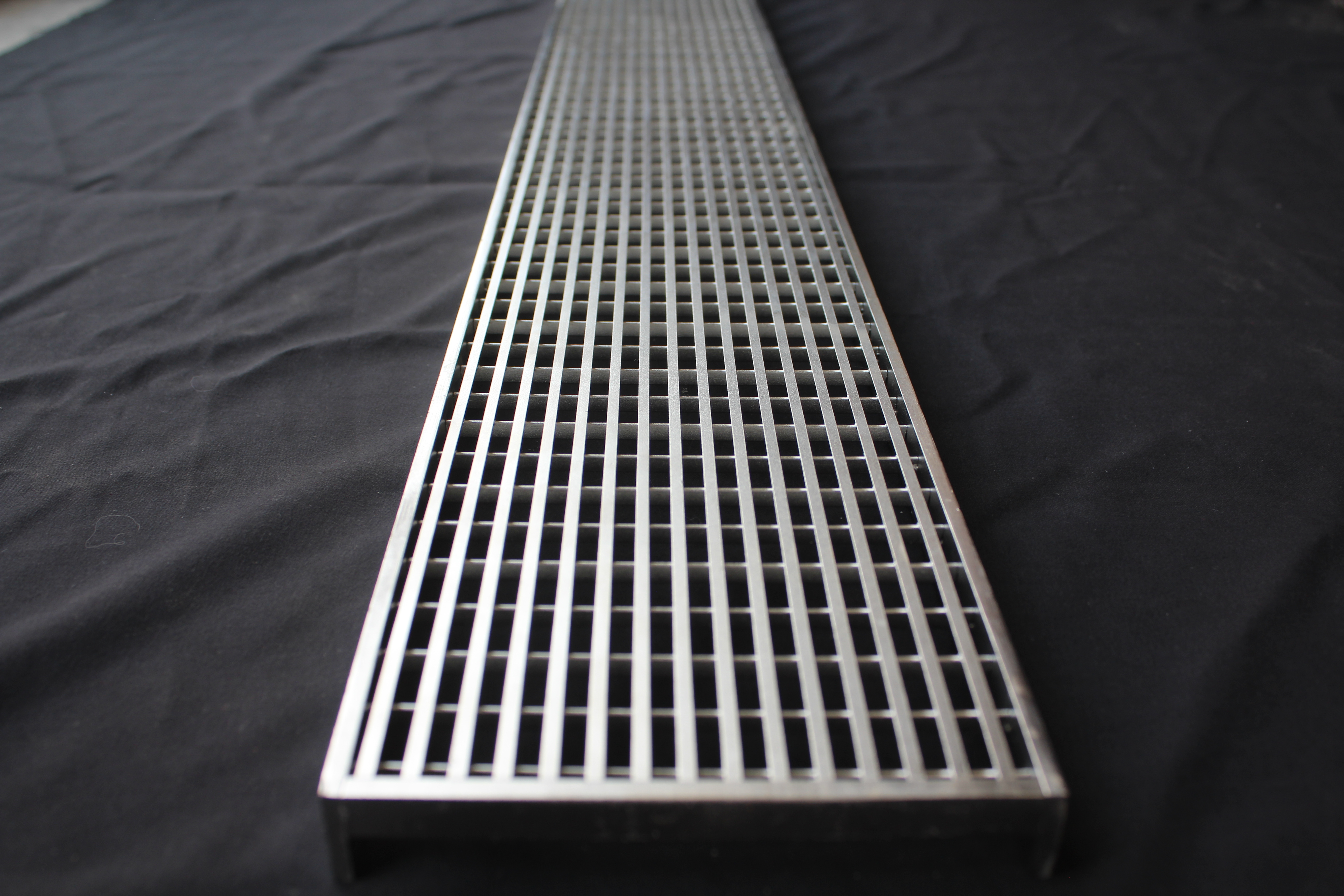

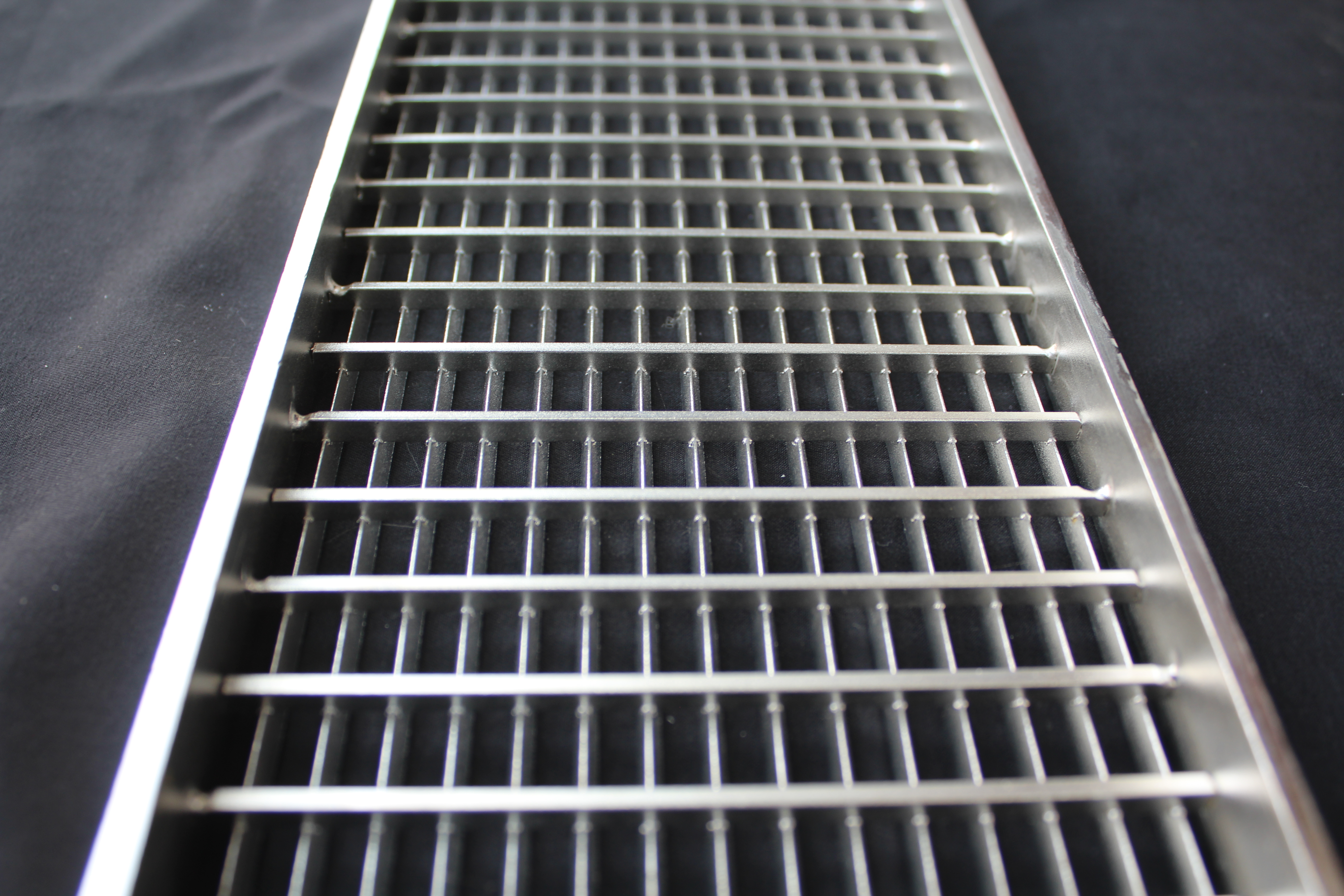

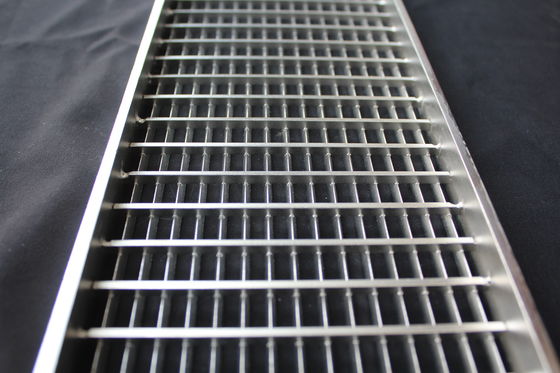

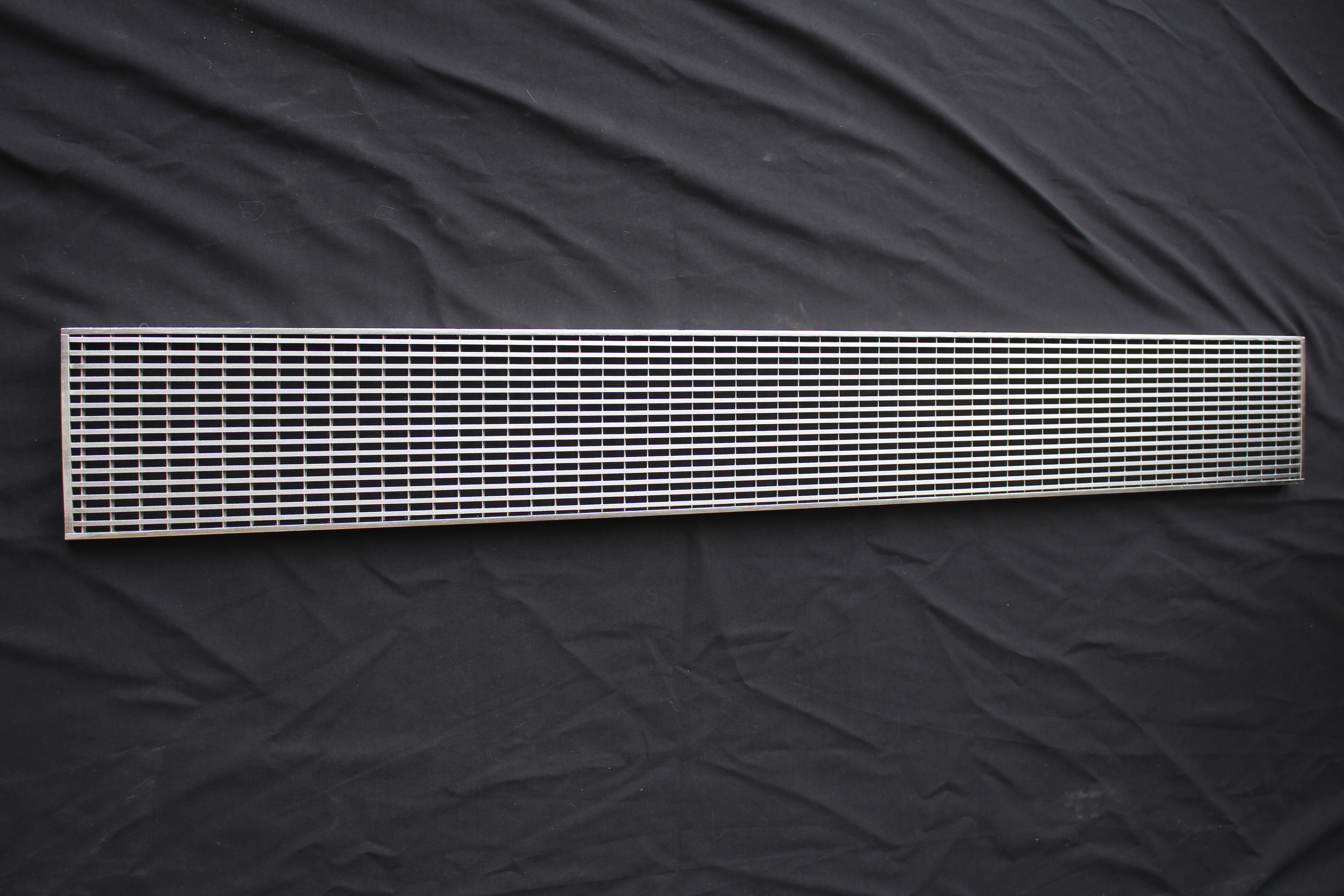

Aesthetic Catwalk Steel Grating Platform 316 Stainless

محل منبع آنپینگ چین
نام تجاری TT
گواهی ISO9001:2015
شماره مدل TT-2
مقدار حداقل تعداد سفارش 50m2
قیمت negotiable
جزئیات بسته بندی بسته بندی مناسب برای صادرات، همچنین به تصمیم سفارشی بستگی دارد
زمان تحویل 3-5 روز، همچنین به مقدار بستگی دارد
شرایط پرداخت L/C ، T/T
قابلیت ارائه 500 متر مربع در روز

برای نمونه و کوپن رایگان با من تماس بگیرید.

واتساپ:0086 18588475571

وی چت: 0086 18588475571

اسکایپ: sales10@aixton.com

اگر نگرانی دارید، ما به صورت آنلاین 24 ساعته راهنمایی می کنیم.

x
جزئیات محصول
کاربرد صنعتی بلبرینگ زمین 30 میلی متر، 40 میلی متر، 50 میلی متر، و غیره
استاندارد رنده YB/T4001.1-2007 دسته محصولات توری فولادی صنعتی
نوع نوار تحمل دندانه دار نام محصول گریتینگ فولادی صنعتی با ضخامت و فاصله میله ای سفارشی
ظرفیت تحمل بار وظیفه سنگین بافت فولاد ضد زنگ
برجسته کردن

316 stainless steel grating platform,aesthetic industrial steel grating,catwalk steel grating with warranty

,

aesthetic industrial steel grating

,

catwalk steel grating with warranty

پیام بگذارید
توضیحات محصول


Name Steel Grating
Bearing Bar 25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10---100x10mm etc
I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc
US standard: 1''x3/16'', 1 1/4''x3/16'', 1 1/2''x3/16'', 1''x1/4'', 1 1/4''x1/4'', 1 1/2''x1/4'', 1''x1/8'', 1 1/4''x1/8'', 1
1/2''x1/8'' etc
Bearing Bar Pitch 12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3, 32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc
US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc.
Twisted Cross Bar Pitch 38.1, 50, 60, 76, 80, 100, 101.6, 120mm, 2'' & 4'' etc
Material Grade ASTM A36, A1011, A569, Q235, S275JR, SS304, SS400,
Mild steel & Low carbon steel, etc
Surface Treatment Black, self colour, hot dip galvanized, painted, spray coating
Grating Style Plain / Smooth, Serrated /teeth, I bar, serrated I bar
Standard China: YB/T 4001.1-2007, USA: ANSI/NAAMM(MBG531-88),
UK: BS4592-1987, Australia: AS1657-1985,
Germany: DIN24537-1-2006, Japan :JIS

understand the product
Steel grid is a kind of gridded metal products made of steel, usually made of flat steel, twisted steel and ring steel and other materials through pressure welding, spot welding, hand weaving and other production processes. The commonly used steel grid plate is low carbon steel, stainless steel, aluminum alloy and copper and other metal materials. Among them, mild steel is the most common. Steel grids of different materials have different characteristics and application scenarios. Steel grid plate has the characteristics of high strength, anti-slip, anti-corrosion and beautiful appearance. As a new type of engineering material, steel grid plate is mainly used as industrial platform, trestle, bridge, highway guardrail, ditch cover plate, fence and other facilities in metallurgy, energy, shipbuilding, municipal, petrochemical, transportation, building materials, national defense and other fields. At present, China's annual demand for steel grid plate is about 270,000 tons, so the market prospect of steel grid plate is very broad.service aim

Aesthetic Catwalk Steel Grating Platform 316 Stainless 0


Carefully produce every piece of steel grid plate, emphasizing the principle of integrity first. For the needs of customers to do their best to meet, to ensure that everyone buy the rest of the peace of mind.Carefully select raw materials, for each processing procedure of the product are strictly checked to ensure that the products sent to the hands of customers are durable and beautiful appearance so that more people choose our productsproduct diversity
Steel grid plate, also known as grid plate or grid plate, is a plate made of steel with a mesh structure. It is mainly composed of flat steel and horizontal rods (such as twisted square steel, round steel, etc.) arranged and welded at a certain distance. Steel grid plate is usually made of carbon steel, the surface of hot-dip galvanized treatment to prevent oxidation, but also can be made of stainless steel to meet different environmental needs.

Aesthetic Catwalk Steel Grating Platform 316 Stainless 1
